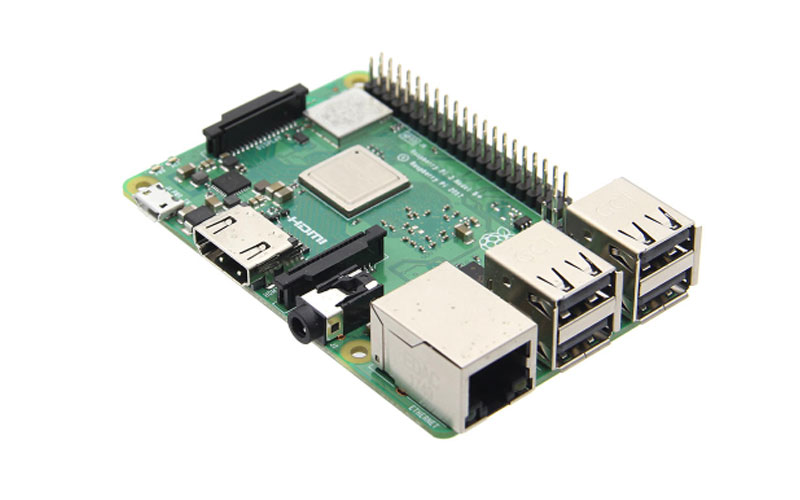

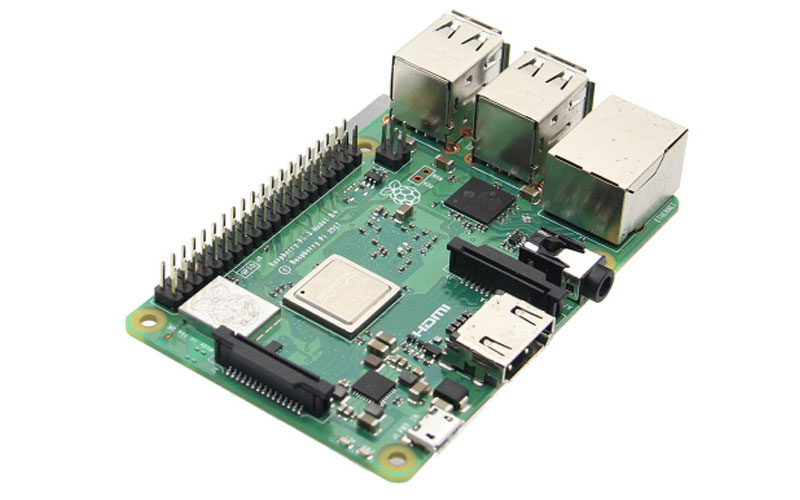

Raspberry Pi 3 Model B+ (Plus) Mother Board Mainboard with BCM2837B0 Cortex-A53
$56.99$46.99
Hurry up Only a few deals left
Overview
This is the latest product in the Raspberry Pi 3 range. The Raspberry Pi 3 Model B+ Motherboard has a 64-bit quad core processor, with a running speed of 1.4GHz. With faster Ethernet and dual-band LAN of 2.4GHz, as well as 5GHZ, the motherboard operates with a power of 5V only. It has 4 2.0 USB ports, as well as a DSI port for connecting a Raspberry Pi touchscreen display and a CSI port for connecting Raspberry Pi camera. The motherboard has an extended 40-pin GPIO header, supports Micro SD card for loading the operating system, and has 4 pole stereo output, with a composite video port.
Highights
- Specifications:
- Processor: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
- Memory: 1GB LPDDR2 SDRAM
- Connectivity:
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
- Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
- 4 USB 2.0 ports
- Access: Extended 40-pin GPIO header
- Video&sound:
- Full-size HDMI
- CSI camera port for connecting a Raspberry Pi camera
- DSI display port for connecting a Raspberry Pi touchscreen display
- 4-pole stereo output and composite video port
- Multimedia: H.264, MPEG-4 decode(1080p30);H.264 encode(1080p30); OpenGL ES 1.1,2.0 graphics
- SD card support: Micro SD port for loading your operating system and storing data
- Input power:
- 5V/2.5A DC power input
- 5V DC via GPIO header
- Power-over-Ethernet (PoE) support (requires separate PoE HAT)
- Environment: Operating temperature, 0-50°C
- Package Included:
- 1x Raspberry Pi 3 Model B+ board
